GX Disc Brake Gravel Frameset 49CM Baltic Red Refurbished
Regular price
$1,000.00
Sale price
$1,789.00
Unit price per
GX is our most relaxed fit gravel frame. It has very good compliance for your off-road adventures.
Including Parts: GX Frame, Fork, Handlebar, Seatpost
Frame:
Size: 49cm
Material: High Modulus Toray 800 Carbon Fiber
Color: Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White
BB: BB86
Headtube: Straight 1-1/2”
Rear Dropout: 12*142 Thru Axle
Rear Derailleur Hanger: Replaceable
Frame Weight: 980g+/-50g (49cm)
Handlebar:
Handlebar Size: 400mm,420mm,440mm
Stem Size: 80mm/90mm/100mm/110mm
Handlebar Weight: 340+/-15g (420x90)
Fork & Seatpost:
Fork: 1-1/2" Straight Steerer, 12*100 Thru Axle
Fork Weight: 430g+/-15g
Seatpost Weight: 210+/-15g
Compatibility:
Brake Fitment: Flat Mount Disc
Cable Routing: Internal
Bottle Mounts : 4
Mudguard Compatible: Yes
Cargo Rack Compatible: Yes
Max Tire Width: 700X53mm , 650BX2.1”
Accessories:
Handelbar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing Cap 10mm:1PC
Front Axle: 1pc, Rear Axle: 1pc
Limited Rider Weight: 110KG
Warranty: 3 Years
Note：Single chainring, max 42T (corresponding chainline=49.7mm ).
Double chainring, max 54/42T (chainline=43.5mm) , min 46-30 (chainline=47mm)

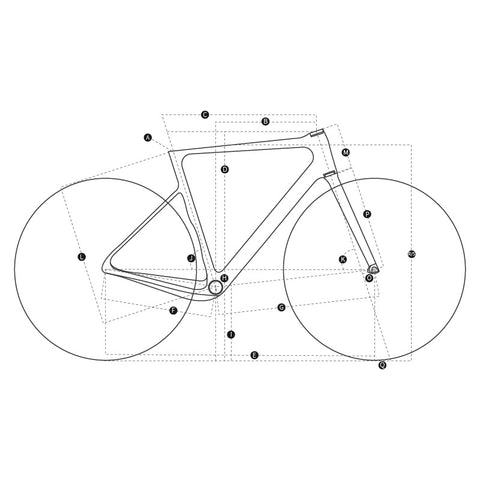

Geometry:
| GX | S/49CM | M/52CM | L/55CM | XL/58CM | |
| A | Seatpost insert length | 180 | 220 | 250 | 270 |
| B | Reach | 374 | 377 | 386 | 397.1 |
| C | Top tube length, horizontal | 535 | 550 | 575 | 595 |
| D | Stack | 542.6 | 563.4 | 598.6 | 627.1 |
| E | Wheelbase | 1008.9 | 1014.5 | 1029.6 | 1049.8 |
| F | Chainstay length | 430 | 430 | 430 | 430 |
| G | Front center | 593.8 | 599.4 | 614.5 | 634.5 |
| H | BB drop | 70 | 70 | 70 | 70 |
| I | BB Height | 285 | 285 | 285 | 285 |
| J | Seat tube angle | 73.5 | 73 | 72.5 | 72.5 |
| K | Head tube angle | 71 | 71.5 | 72 | 72 |
| L | Seat tube length | 490 | 520 | 550 | 580 |
| M | Head tube Length | 120 | 140 | 175 | 205 |
| O | Fork rake/ offset | 50 | 50 | 50 | 50 |
| P | Fork length | 397 | 397 | 397 | 397 |
| Q | Trail | 69.3 | 66.1 | 62.7 | 62.7 |
| R | Bike standover height (700x53c) | 776.4 | 793.4 | 833.4 | 863.9 |
| S | Bike standover height (650bx2.1) | 766.4 | 783.4 | 823.4 | 853.9 |
Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That’s why you’ll see some overlap in our recommendations.
| Size | S 49CM |
M 52CM |
L 55CM |
XL 58CM |
| Rider Height | 165-174CM |
175-184CM |
185-194CM |
>194CM |
| Minimun Inseam Height | 73-83CM | 80-86CM | 84-90CM | >87CM |
