R11 SUPER LIGHT RIM BRAKE BIKE FRAMESET

Regular price $1,874.74

Unit price per

Size

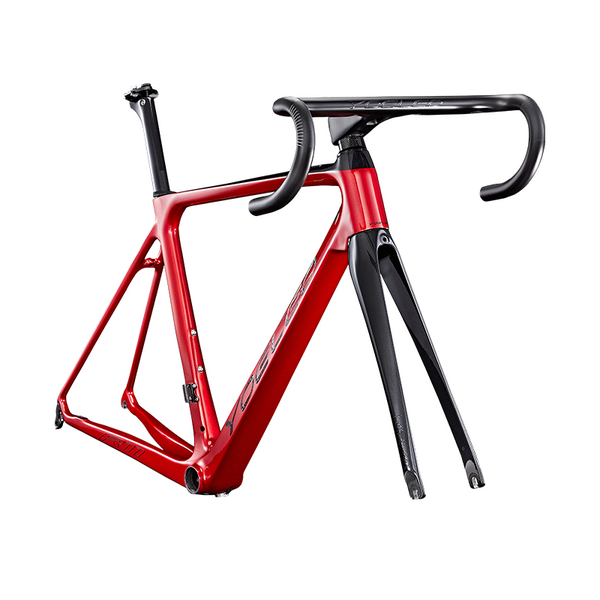

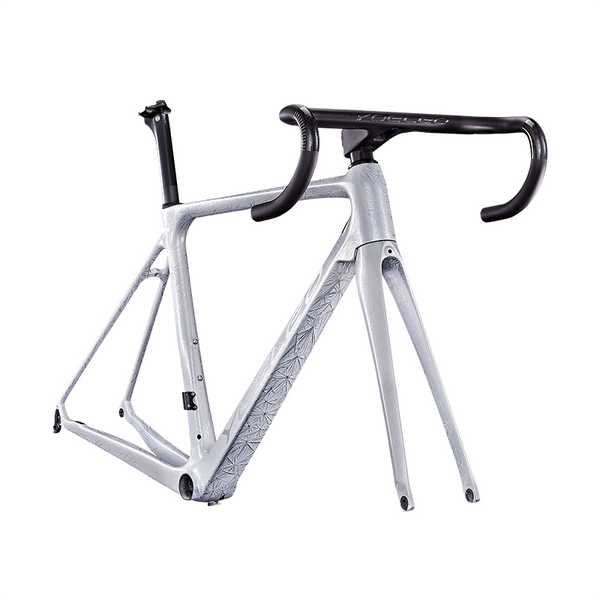

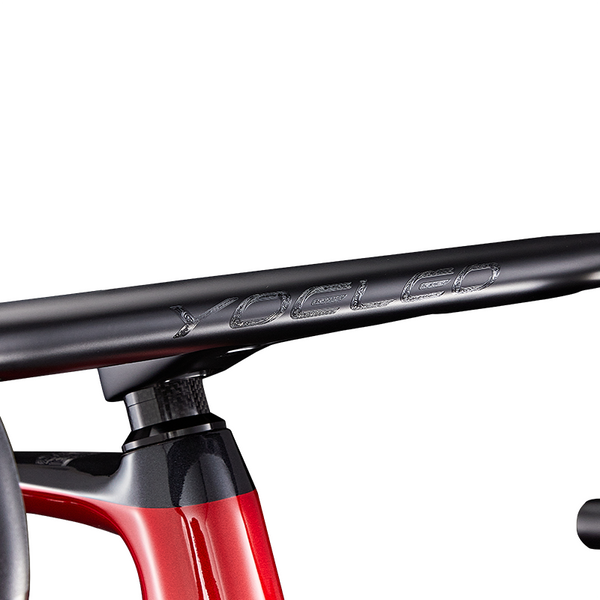

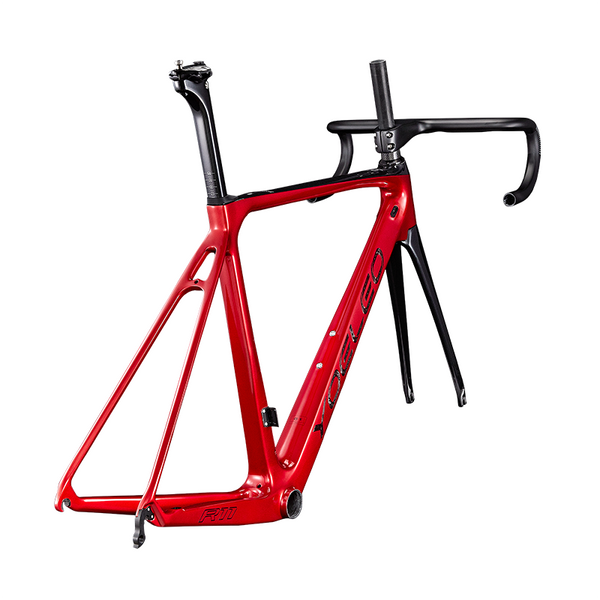

Frameset: R11 Frame+Fork+H9 Handlebar+Seatpost

Sizes:  46cm,49cm,52cm,54cm,58cm

Handlebar Size: 380mm,400mm,420mm,440mm

Stem Size: 90mm/100mm/110mm/120mm

Material: High Modulus Toray T1000 Carbon Fiber

Color: Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White

Carbon Weave: UD

Groupset Compatible: Machine and Di2 compatible

BB: BB86

Rear Dropout: 130*QR

Rear derailleur hanger: Replaceable

Headtube: Tapered 1-1/8” to 1-1/2”

Fork:  NON Direct Mount Fork

Fork Offset: 45˚

Brake: Caliper Rim Brake

Max Tire Width: 30mm

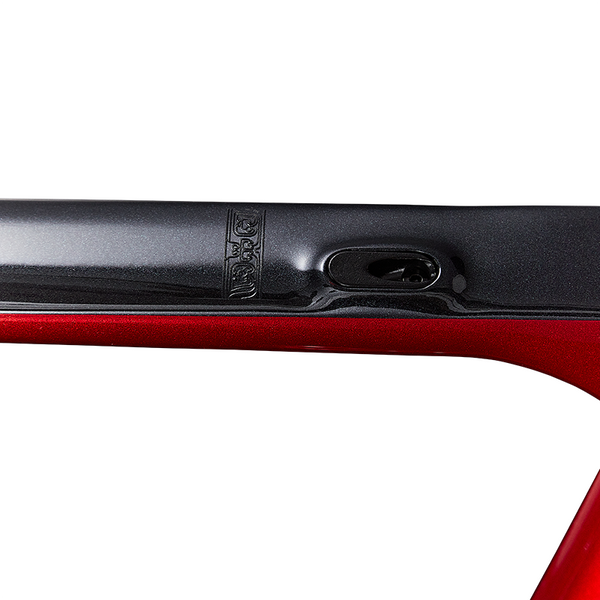

Cable: Internal cable route, partial outside

Frame Weight: 875g+/-30g (52cm)

Fork Weight: 390g+/-15g

Seatpost Weight: 204g+/-15g

Accessories:  Di2 cover 2PCS

                      1PC Spare Rear Hanger

Limited Rider Weight: 105KG

Warranty: 3 Years



Geometry:



Size XS/46CM S/49CM M/52CM L/54CM XL/58CM
A Seatpost Insert Length 210mm 240mm 270mm 300mm 340mm
B Reach 367.5mm 383.9mm 394.5mm 398.4mm 398.3mm
C Top Tube Length, Horizontal 510mm 535mm 560mm 575mm 600mm
D Stack 513mm 526mm 558mm 577mm 620mm
E Wheelbase 961mm 972.8mm 990.1mm 998.8mm 1011.5mm
F Chainstay Length 405mm 405mm 405mm 405mm 405mm
G Front Center 567.1mm 578.7mm 595mm 600.1mm 612.7mm
H BB Drop 72mm 72mm 69mm 67mm 67mm
I BB Height 267.8mm 268mm 270.9mm 274mm 272.9mm
J Seat Tube Angle 74.5° 74° 73.5° 73° 72°
K Head Tube Angle 71.5° 72.5° 73° 73.5° 73.5°
L Seat Tube Length 460mm 490mm 520mm 540mm 580mm
M Head Tube Length 108mm 118mm 153mm 173mm 218mm
N Fork Rake/Offset 45mm 45mm 45mm 45mm 45mm
O Fork Length, Full 372mm 372mm 372mm 372mm 372mm
P Trail 67mm 61mm 57mm 54mm 53.5mm
Q Bike Standover Height(700c*25c) 741.4mm 759.9mm 790.7mm 809.8mm 849mm
R Size Recommendation 165-174 175-180 181-188 189 -194 195>
S Inseam 75-78 78-82 82-85 86-90 90>


Sizing & Fit:

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.

That’s why you’ll see some overlap in our recommendations.

Size XS
46CM
S
49CM
M
52CM
L
54CM
XL
58CM
Rider Height 165-174CM 175-180CM 181-188CM 189-194CM >195CM
