Serk A40 "The Fixer" Titanium Frameset
Description
True performance is never just numbers on paper - it is the perfect blend of function and feeling; the rider and bike coming together as one. This is the design ethos of the A40, dubbed ‘The Fixer’.
With a new endurance geometry, additional mounting bosses for racks/mudguards/3rd bottle and true clearance for 700c x 40mm tires, the A40 takes you further into uncharted territories.
Features
- Titanium 3Al/2.5V frame / Carbon fork
- Clearance for 40mm tyres
- Endurance geometry

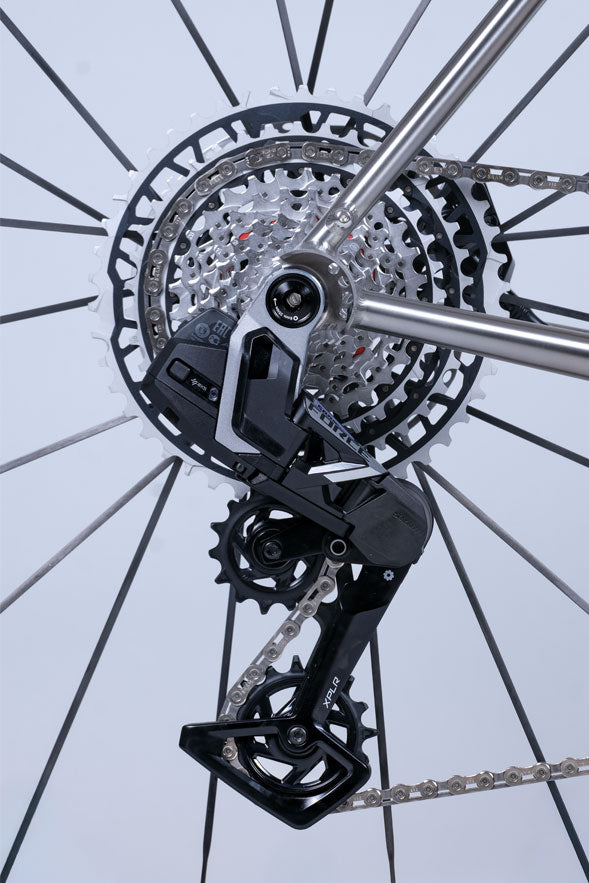

- Custom UDH dropout
- 1x and 2x compatible - 8sp onwards
- Integrated or external cabling
- 3rd bottle cage mount

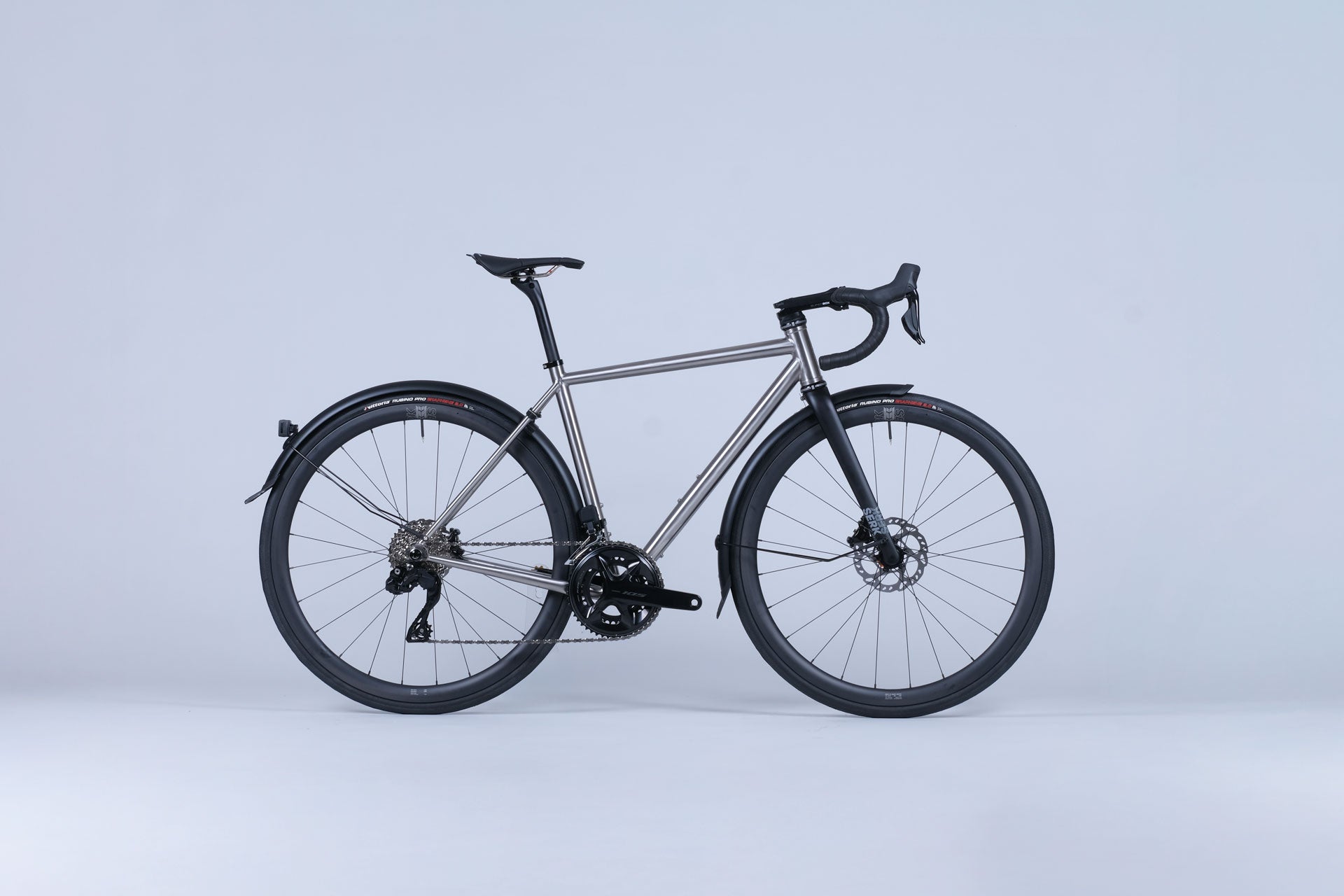

- Full mudguard mounts front and rear
- Quick release style rear rack compatible
Geometry

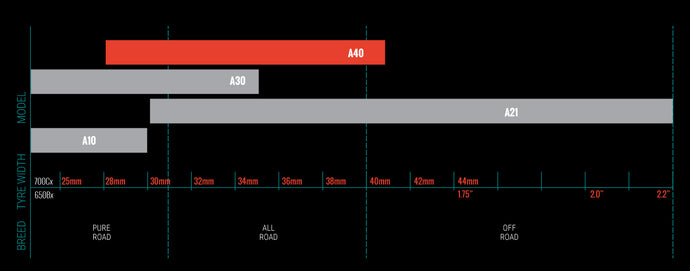

Geometry is optimized for 30-32mm tyres but the frame and fork can accomodate tyres up to 40mm with ample clearance putting the bike into the 'all-road' category and capable as a gravel bike.
Custom Paint Options
We are opening up personalized bikes to a new market with our semi-custom paint program. High quality, one off boutique painting at a more affordable price and a fast 4 week turn around.
We have 3 pre-designed paint templates to choose from and hundreds of color combinations for an individualized scheme. Check them out here.
True performance is never just numbers on paper - it is the perfect blend of function and feeling; the rider and bike coming together as one. This is the design ethos of the A40, dubbed ‘The Fixer’.
With a new endurance geometry, additional mounting bosses for racks/mudguards/3rd bottle and true clearance for 700c x 40mm tires, the A40 takes you further into uncharted territories.
Titanium 3Al/2.5V frame / Carbon fork
Clearance for 40mm tyres
Endurance geometry
Custom UDH dropout
1x and 2x compatible - 8sp onwards
Integrated or external cabling
3rd bottle cage mount
Full mudguard mounts front and rear
Quick release style rear rack compatible
Geometry is optimized for 30-32mm tyres but the frame and fork can accomodate tyres up to 40mm with ample clearance putting the bike into the 'all-road' category and capable as a gravel bike.
DESIGN DETAILS

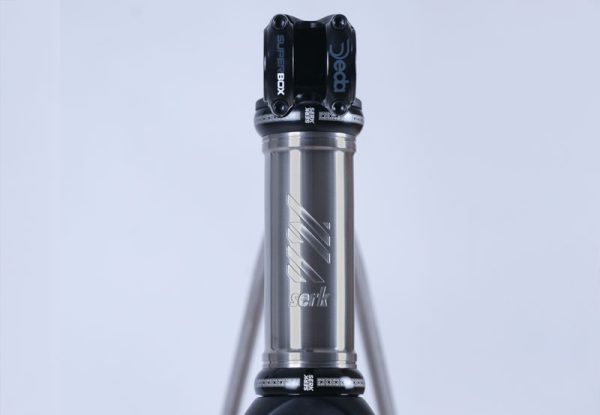

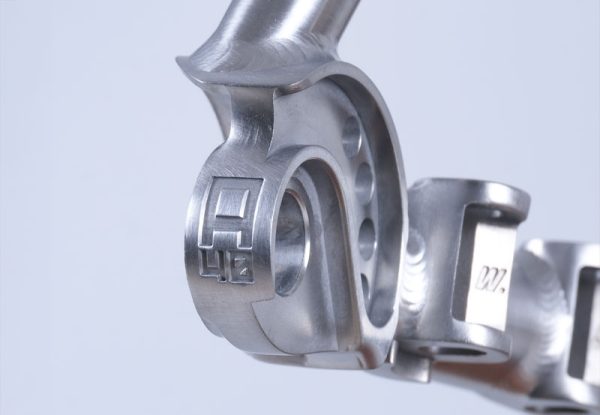

The devil is in the details and in places where you don’t immediately see; new custom designed drop outs, headtube, flat mount brake bosses.
Drivetrain Versatility

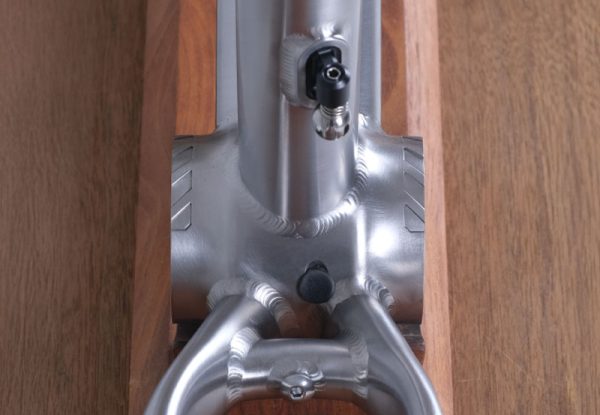

The A40 supports all 1x and 2x mechanical road groupsets from 8 speed onward, thanks to a custom cable stop port—making it one of today’s most universally compatible bikes for drive trains.
WEIGHT OPTIMIZED
The A40’s new hydro-formed tubeset boosts comfort for all-day rides, retains beloved A30 handling, and features hidden weight-saving details, weighing 100g less than A30 frames.

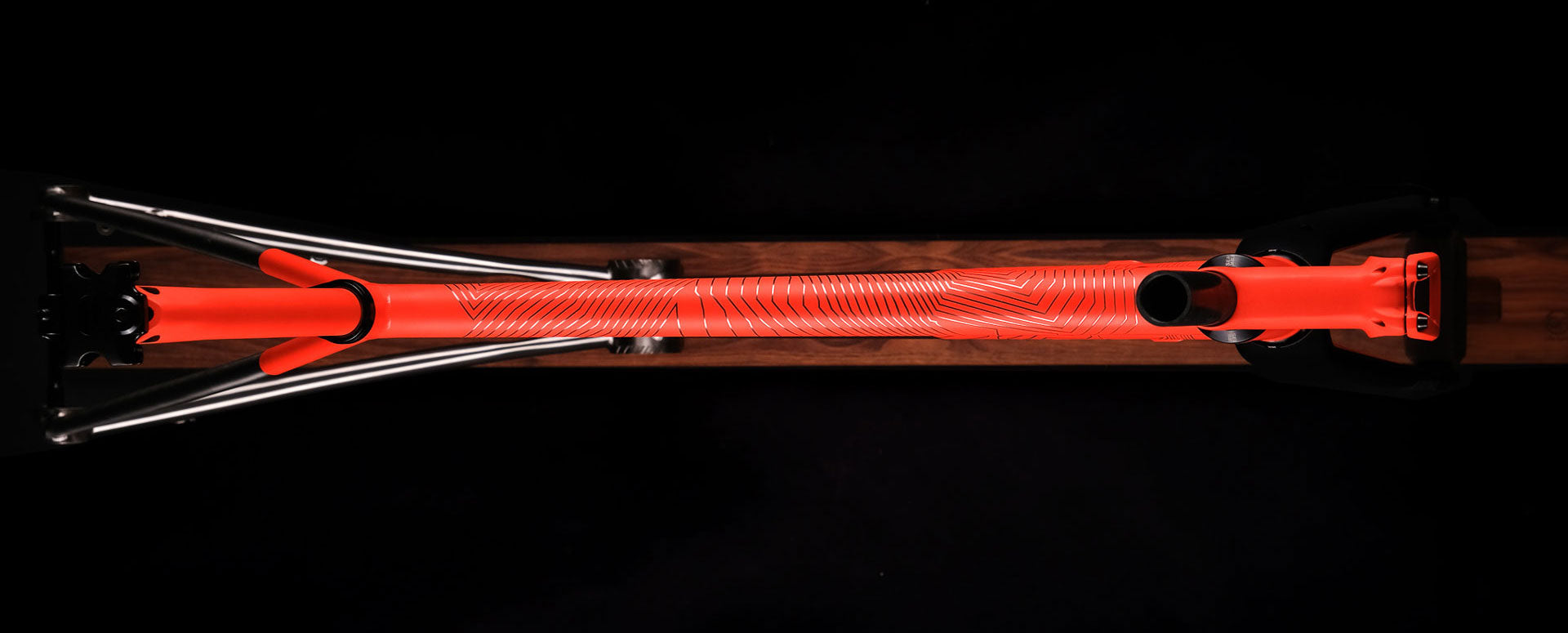

CUSTOM PAINT OPTIONS
We are opening up personalized bikes to a new market with our semi-custom paint program. High quality, one off boutique painting at a more affordable price and a fast 4 week turn around.
We have 3 pre-designed paint templates to choose from and hundreds of color combinations for an individualized scheme. Check them out here.

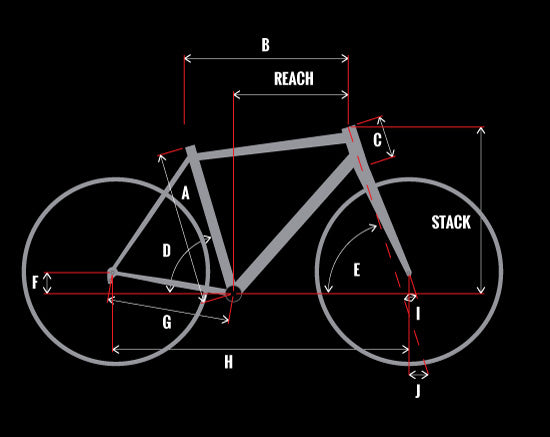

| XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|
| Reach | 366 | 374 | 382 | 390 | 398 | 406 | |
| Stack | 519 | 548 | 567 | 590 | 613 | 638 | |
| * | Additional top headset stack (Internal routing) | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| * | Additional top headset stack (External routing) | 10.1 | 10.1 | 10.1 | 10.1 | 10.1 | 10.1 |
| A | Seat Tube Length | 435 | 495 | 515 | 535 | 560 | 585 |
| B | Top Tube Length | 505 | 526 | 545 | 565 | 580 | 601 |
| C | Head Tube Length | 90 | 121 | 141 | 168 | 192 | 218 |
| D | Seat Tube Angle | 75 | 74.5 | 74 | 73.5 | 73.5 | 73 |
| E | Head Tube Angle | 71 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| F | BB Drop | 77 | 75 | 75 | 73 | 73 | 73 |
| G | Chainstay length | 420 | 420 | 420 | 420 | 420 | 420 |
| H | Wheelbase | 981 | 995 | 1009 | 1026 | 1042 | 1058 |
| I | Fork Offset | 47 | 47 | 47 | 47 | 47 | 47 |
| J | Trail (28C) | 67 | 63.9 | 63.9 | 63.9 | 63.9 | 63.9 |
| J | Trail (35C) | 69.4 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 |
| J | Trail (40C) | 71.2 | 67.9 | 67.9 | 67.9 | 67.9 | 67.9 |
| * | Standover Height (28C) | 710 | 755 | 733 | 796 | 819 | 843 |
| * | Standover Height (35C) | 717 | 762 | 780 | 803 | 826 | 850 |
| * | Standover Height (40C) | 722 | 767 | 785 | 808 | 831 | 855 |
