G2 DISC BRAKE GRAVEL FRAMESET
Regular price $2,005.00
Unit price per
G2 is an incredible frameset for going as fast as possible over ALL surfaces. Aggressive road geometry for cyclocross and gravel racing. Will also rock the road when needed.
Frameset: G2 Frame+Fork+Seatpost+(Handlebar)
Material: High Modulus Toray T1000 Carbon Fiber
Color: Navy Blue / Stealth Black / Custom Painting
Carbon Weave: UD
Frame Sizes: 52cm,54cm,56cm,58cm
Frame Weight: 1040+/-40g(54cm)
Handlebar Size: 400mm,420mm,440mm
Stem Size: 90mm/100mm/110mm
Handlebar Weight: 360+/-15g
Fork Weight: 460g+/-15g
Seatpost Weight: 185+/-15g
Groupset Compatible: Machine and Electronic compatible
BB: BB86
Rear Dropout: 12*142 Thru Axle
Rear derailleur hanger: Replaceable
Headtube: 1-1/8" to 1-1/2"
Fork: Disc Brake Fork,Flat Mount,12*100 Thru Axle
Fork Cabling: External
Fork Drop: 55mm
Brake: Flat Mount Disc Brake
Max Tire Size: 700*41C or 650B*1.9''
Max Chainring: Max 54T- Small 34T
Cable: External Cable
Accessories: Handelbar Spacers 5mm: 1PC, 10mm: 1PC, Front Axle 1 PC, Rear Alxe 1 PC
Limited Rider Weight: 110KG
Warranty: 6 Years

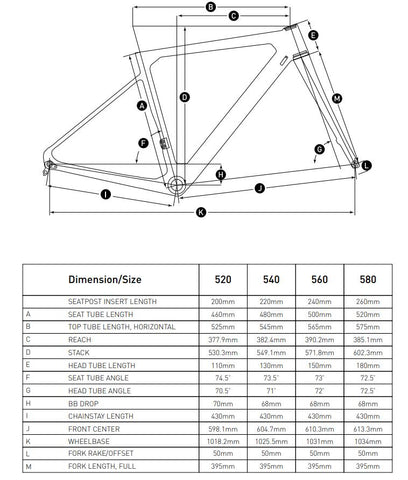

Geometry:

Fit All Road
Yoeleo G2 is compatible with all road conditions, such as adventure, all-road, groad, gnarmac etc. It's ready to serve your next adventure.
EPS+LATEX PRODUCTION TECH FOR HANDLEBAR AND FRAME
Moulded by one piece monobloc with EPS+LATEX tech makes the handlebar much stiffer and smoother internally, yet easier for cable routing.


Tire clearance
Lots of clearance means you can run meatier tires (700*41C or 650B*1.9'') for tackling chunkier gravel and terrain.
Rounded Seatpost
27.2mm Diameter Round


Tons of mounts
Integrated frame bag and fender mounts make it easy to carry gear and water.
Rack Mounts
Rack mounts max weight limit is 25kg. For security, the rack mounts are for luggage only


6 YEARS OR LIFETIME WARRANTY
Durlable, Afforable, Quality Frameset We offer 6years quality warranty for the Frameset including the handlebars by H21.
Optional for lifetime warranty.

CRASH REPLACEMENT
We hope you don't need this but if you have a crash, we offer a 30% crash replacement discount on all wheels and framesets. Please contact us and we’ll do our very best to help you and ride again ASAP.
Dedicated to detail, with elegant design, the all road machine G2 can be used on Cyclocross + Gravel + Road.
Check the video for more details
