SERK A30M Titanium Integrated Frameset + Cockpit
Regular price $4,500.00
Unit price per

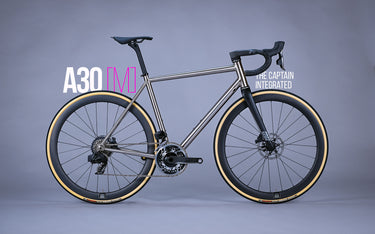

We took the A30 our best selling bike and pushed it one step further - the A30[M].
[M]inus - the cables for a cleaner clutter free look

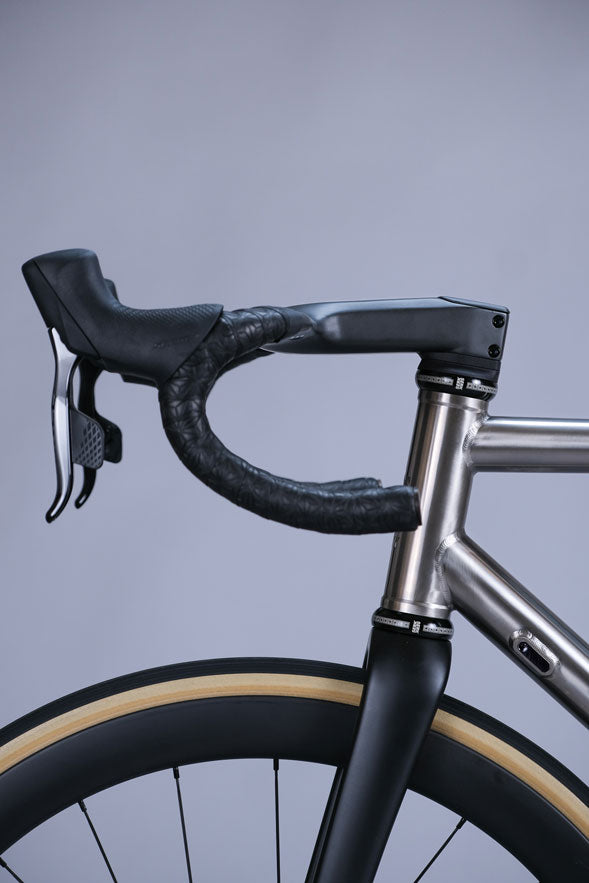

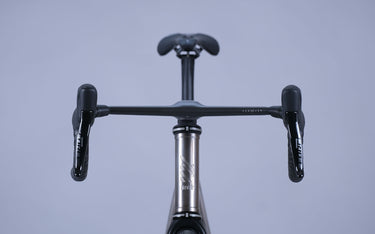

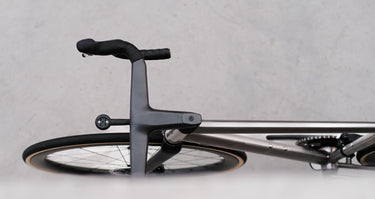

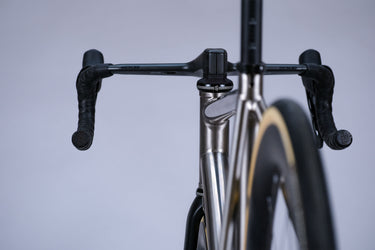

[M]inimal - one piece cockpit
[M]odular - choose the aero integrated option or go with external cables - the choice is yours.
Titanium 3Al/2.5V frame / Carbon fork
Clearance for 35mm tyres
T47 bottom bracket shell
Di2 compatible
Fast road geometry
Bridgeless seatstays
Integrated front end cabling

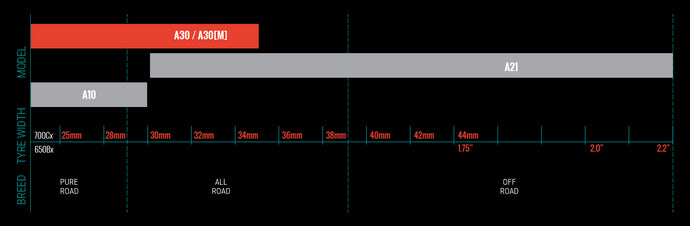

Geometry is optimized for 28mm tyres but the frame and fork can accomodate tyres up to 35mm putting the bike into the 'all-road' category and ready to take on adventure.
Titanium 3Al/2.5V
Flat mount disc brakes

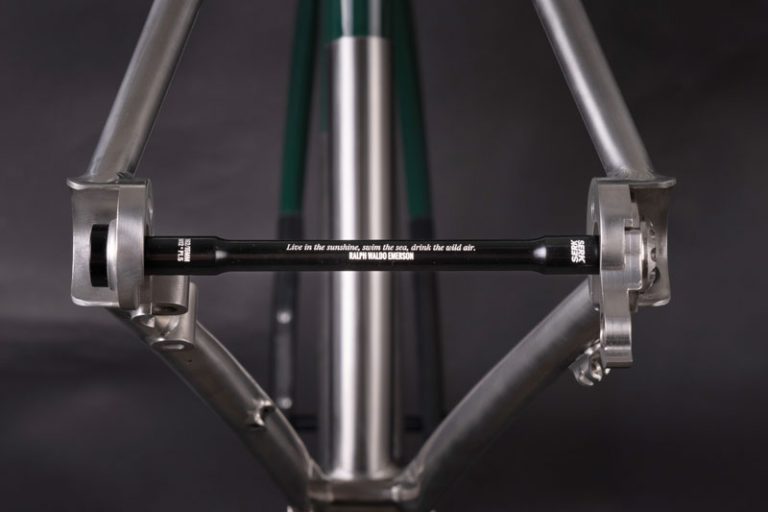

Rear 12x142mm

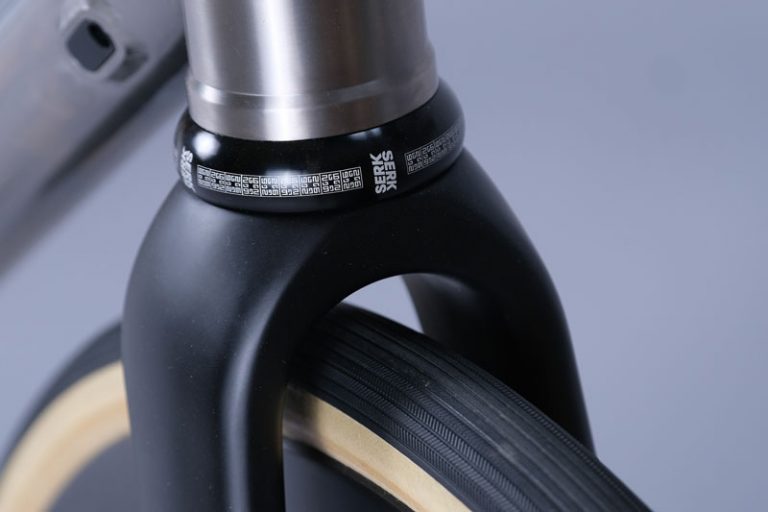

Clearance for 35mm tyres*
Di2 Compatible
T47 BB Shell
Fork : Serk Carbon Internal Cable All-Road*
12x100mm

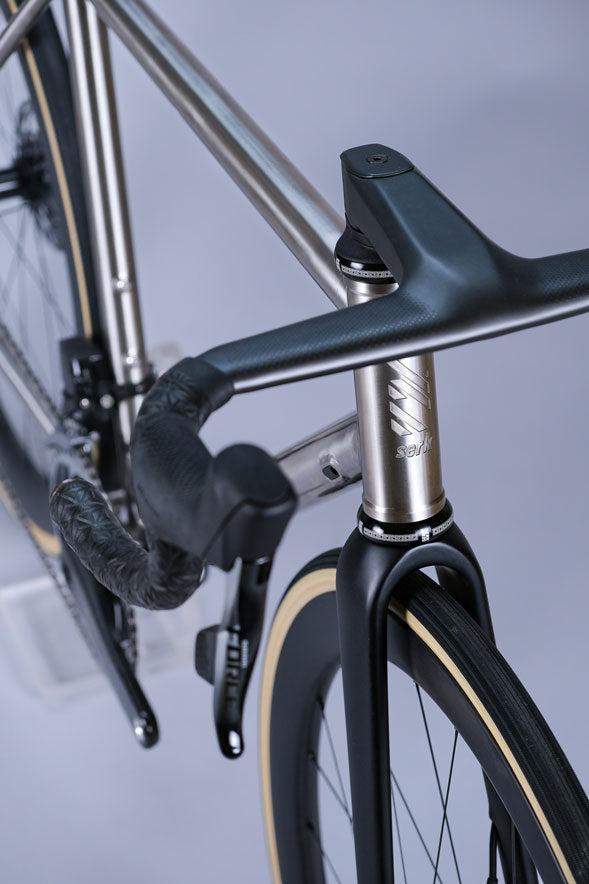

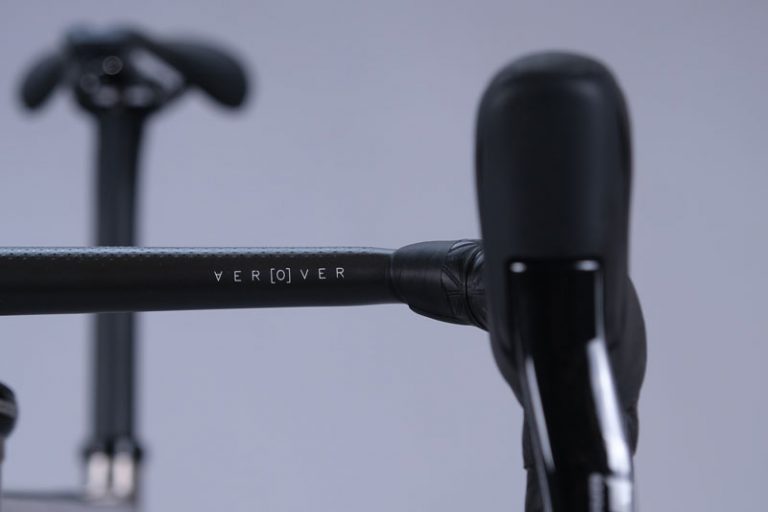

Handlebar : EXS Integrated carbon
Includes Serk Headset Integrated, seatpost clamp, thru-axles, expander, aero computer mount.
*measured 35mm width.

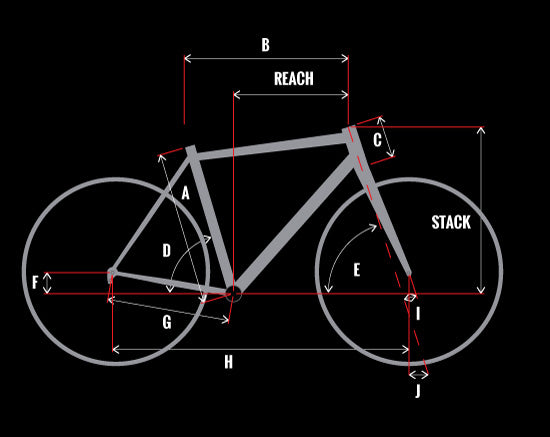

GEOMETRY
|
|
|
||||||
|---|---|---|---|---|---|---|---|
REACH |
366 | 374 | 382 | 390 | 398 | 406 | |
STACK |
506 | 529 | 552 | 575 | 598 | 623 | |
* |
ADDITIONAL TOP HEADSET STACK |
28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
A |
SEAT TUBE LENGTH |
470 | 490 | 510 | 530 | 550 | 580 |
B |
TOP TUBE LENGTH |
506 | 526 | 546 | 566 | 587 | 602 |
C |
HEAD TUBE LENGTH |
93 | 109 | 132 | 154 | 176 | 202 |
D |
SEAT TUBE ANGLE |
74.5 | 74 | 73.5 | 73 | 72.5 | 72.5 |
E |
HEAD TUBE ANGLE |
70.5 | 72 | 72.5 | 73 | 73.5 | 73.5 |
F |
BB DROP |
73 | 73 | 73 | 73 | 73 | 73 |
G |
CHAINSTAY LENGTH |
420 | 420 | 420 | 420 | 420 | 420 |
H |
WHEELBASE |
986 | 981 | 992 | 1002 | 1012 | 1027 |
I |
FORK OFFSET |
50 | 43 | 43 | 43 | 43 | 43 |
J |
TRAIL (28C) |
67 | 64.9 | 61.8 | 58.7 | 55.6 | 55.6 |
