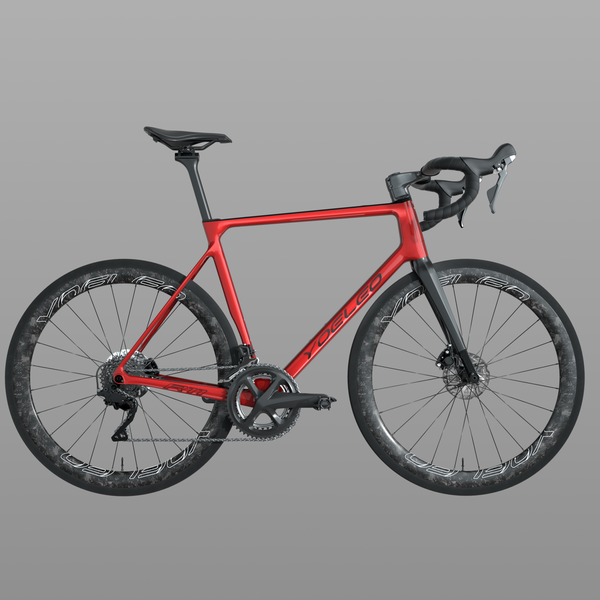

R11 STD Disc Brake Carbon Road Bike

Let's understand our product better, scroll down to see your awesome choice

Yoeleo Sponsored Team - Cykeln

We have been sponsoring the Italian Cykeln team since 2016.
All team members are using Yoeleo SAT T60|88 carbon wheels.
In 2016, the team member Martino Poccianti set the fastest lap in Red Hook Crit Milano history.
His time of 1:29.576 was 2 seconds faster than the previous track record.
The average speed for this lap was a blistering 52kph.

Strict Quality Control

We have strict quality control process to ensure the excellent frameset quality.
1.Pedaling Fatigue Test : Load 1100N , 100000 Cycles
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles

Improvements for 2021 Version

2021 R11 IMPROVEMENT
1. Fits Wider Tires: max 32c (28c for previous version)
2. Improve the cable to be all inner hidden cable
3. New EPS+Latex frame molding tech makes frameset lighter and smoother for cable routing

R11 - TÜV CERTIFICATION

PASS ISO 4210 - 2:2015 CLAUSE 4.8 CYCLES
Yoeleo believes that quality assurance accompanies the development phase and is a significant part of the production. To make sure that you can enjoy using our new R11 bike for many years it is not sufficient to just conduct a quality check at a certain point of the production process.

Our R11 carbon framesets are German TÜV approved so you can ride them with total confidence that not only will they look fantastic, they're also SAFE to use.
 The TÜV mark means you can be assured that you are buying a quality R11 that has been rigorously tested. Certificates are set out on the left.

Please click the report and take a moment to read them through.

R11 STD Disc Brake Carbon Road Bike
R11 STD Disc Brake Carbon Road Bike
R11 STD Disc Brake Carbon Road Bike
R11 STD Disc Brake Carbon Road Bike
R11 STD Disc Brake Carbon Road Bike
R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike
Load image into Gallery viewer, R11 STD Disc Brake Carbon Road Bike

R11 STD Disc Brake Carbon Road Bike

Regular price $4,650.82

Unit price per

Frame Size

Frame Sizes:  49cm,52cm,54cm,56cm,59cm
Color: Color: Dark Olive / Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White

Frame
YOELEO R11 Super Light Frame
Material: Carbon Fiber T1000
Axle Dimension: 12 x 142 mm
Brake Mount: Flat Mount
Weight: 850g(54cm)
Seatpost Weight: 204g

Fork
YOELEO R11 Super Light  Fork
Material: Carbon
Steerer: Taper 1-1/8” to 1-1/2”
Axle Dimension: 12 x 100 mm
Brake Mount: Flat Mount
Weight: 390g

Handlebar
YOELEO H9 Handlebar
Handlebar Width: 380mm/400mm/420mm/440mm
Handelbar Stem: 90mm/100mm/110mm/120mm
Weight: 325+/-15gram

Groupset
Shifter Shimano R7020, 11-Speed
Front Derailleur Shimano 105 R7000, braze-on
Rear Derailleur Shimano 105 R7000
Crank Shimano 105 R7000
Cassette Shimano 105 R7000, 11-speed
Chain Shimano 105 HG601, 11-speed
Brake Shimano 105 hydraulic disc, flat mount
Rotor Front 160mm/Rear 140mm

Wheelset
YOELEO SAT C50|50 DB STD
Thru Axle: 12*100/12*142
Tires Continental GrandSport Race 700*28C

Geometry:

Size Dimension L
Reach
M
Stack
A
Top Tube Length
B
Head Tube Length
C
Seat Tube Angle
D
Head Tube Angle
E
BB Drop
F
Chain Stay
G
Wheel Base
H
BB to Front Wheel
I
Fork Length
J
Fork Rake
K
Seat Tube Length
49CM 373 514 520 110 74° 72.5° 69 410 965 565 370 45 455
52CM 384 523.5 535 120 74° 72.5° 69 410 975 579.5 370 45 475
54cm 385 541 545 136 73.5° 73° 69 410 975 580.2 370 45 495
56CM 394.5 578 560 155 73.5° 73° 69 410 990 594.9 370 45 515
59CM 398 579 575 175 73° 73.5° 69 410 995 600 370 45 535

Sizing & Fit:

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.

That’s why you’ll see some overlap in our recommendations.

Size XS
49CM
S
52CM
M
54CM
L
56CM
XL
59CM
Rider Height 165-173CM 170-178CM 175-183CM 180-188CM 185-193CM
