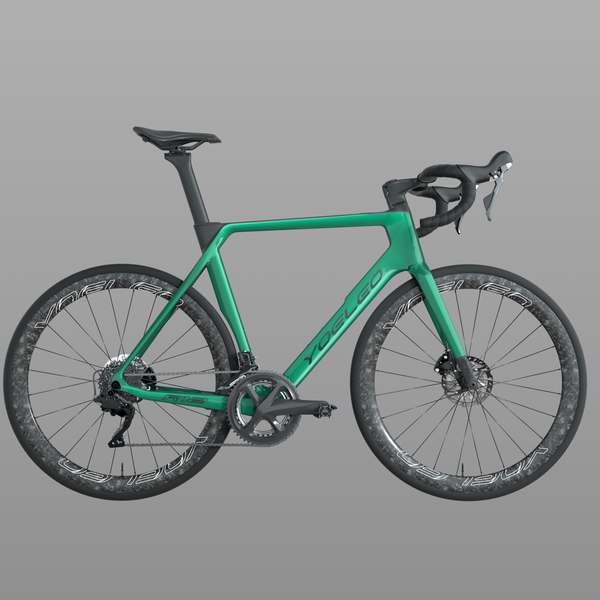

R12 Aero Disc Road Bike - Shimano 105 12 speed DI2
Regular price $5,645.00
Unit price per
Frame Sizes: 43cm,47cm,50cm,52cm,54cm,56cm,59cm
Color: Hemidium / Crimson Black / Custom Painting
Frame
YOELEO R12 Aero Frame
Material: Carbon Fiber T800
Axle Dimension: 12 x 142 mm
Brake Mount: Flat Mount
Weight: 950g(50cm)
Fork
YOELEO R12 Fork
Material: Carbon
Steerer: 1-1/2”
Axle Dimension: 12 x 100 mm
Brake Mount: Flat Mount
Weight: 390g
Handlebar
YOELEO H9 Handlebar
Handlebar Width: 380mm/400mm/420mm/440mm
Handelbar Stem: 90mm/100mm/110mm/120mm
Weight:325+/-15gram
Groupset
Shifter Shimano ST-R7170, 12-Speed
Front Derailleur Shimano 105 FD-R7150, braze-on
Rear Derailleur Shimano 105 RD-R7150
Crank Shimano 105 FC-R7100
Cassette Shimano 105 CS-R7100-12, 12-speed
Chain Shimano 105 M6100, 12-speed
Brake Shimano 105 hydraulic disc, flat mount
Rotor Front 160mm/Rear 140mm
Wheelset
YOELEO SAT C50|50 DB PRO
Thru Axle: 12*100/12*142
Tires Continental GrandSport Race 700*28C
Geometry:
| Size Dimension | A | B | C | D | E | F | G | H | I | J | K | L | M |
| 43CM | 430 | 505 | 370.6 | 501.6 | 100 | 75° | 70.5° | 72 | 415 | 572.9 | 977 | 43 | 371 |
| 47CM | 450 | 516 | 375.9 | 505 | 100 | 74.5° | 71.5° | 72 | 415 | 570.7 | 974.8 | 43 | 371 |
| 50CM | 470 | 528 | 378.6 | 520.9 | 115 | 74° | 72° | 72 | 415 | 574.2 | 978.3 | 43 | 371 |
| 52CM | 490 | 540 | 381 | 536.9 | 130 | 73.5° | 72.5° | 72 | 415 | 577.1 | 981.3 | 43 | 371 |
| 54cm | 510 | 552 | 386 | 550 | 145.7 | 73° | 73° | 72 | 415 | 583.5 | 987.6 | 43 | 371 |
| 56CM | 530 | 567 | 388.2 | 567.2 | 160 | 72.5° | 73° | 72 | 415 | 588.9 | 993.2 | 43 | 371 |
| 59CM | 560 | 582 | 393 | 581.6 | 175 | 72° | 73° | 72 | 415 | 598.1 | 1002.4 | 43 | 371 |
Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That’s why you’ll see some overlap in our recommendations.
| Size | XXS 43CM |
XS 47CM |
S 50CM |
M 52CM |
L 54CM |
XL 56CM |
XXL 59CM |
| Rider Height | 155-163CM | 160-168CM | 165-173CM | 170-178CM | 175-183CM | 180-188CM | 185-193CM |
FULLY INTERNAL CABLE ROUTING
Internal cable routing results in external clean lines and improved aerodynamics with the cables completely hidden from view within our fully internal H9v2 integrated handlebar. The internal cable routing system is not only adding to the aesthetic qualities of the frame, but also makes cleaning the bike a simpler process.
EPS+LATEX PRODUCTION TECH FOR HANDLEBAR AND FRAMES
Moulded by one piece monobloc with EPS+LATEX tech makes the handlebar much stiffer and smoother internally, yet easier for cable routing.
EPS+LATEX PRODUCTION TECH FOR HANDLEBAR AND FRAME
As previously mentioned the R12 is moulded by new manufacturing process called EPS+Latex Tech. Unlike traditional methods like nylon bladders, latex is very flexible and can stretch, so the inside of the frame can be moulded more consistently. This new tech makes R12 incredibly smooth internally eliminating fold lines and creases for a more uniformed internal wall smoothness resulting in a stronger frame. It also simplifies the cable routing process and with this new tech, the frameset weight remains lower due to the extra resin overflow rate is higher and spreads more evenly during the moulding process. Our H9 handlebar are using the same tech as well.
AERODYNAMICS
The R12 is designed to make the airflow pass over in a smoother transition as the frame is propelled forward into the head wind, so in turn less drag is produced. All the tube shapes are built to be streamlined and not too wide in comparison with the width of the tyre. Moreover, the design of the downtube, seat stay and seat post help the bike to be not only aerodynamic against headwind, but also stable in the angle of crosswinds.
INTEGRATED AEROCOCKPIT
The integrated cockpit H9 (V2) enhances great aerodynamic performance to the R12. With the newest EPS+LATEX moulding process, it too results in low weight, high stiffness, clean aesthetics, smoother internal cable routing and comes with mounts to fit most popular devices.
Fit 32C Tyres
The latest research shows that wider tyres with lower pressures produce lower rolling resistance while improving grip. Riders can now choose up to a 32C tyre which is ideal for the demanding uneven road surfaces we encounter as riders and has the added benefit of inspiring greater confidence at speed knowing you have more control in the palm of your hand.
FORK PROFILE
The fork is designed with stealth dropout and integrated thru-axle nut which also improves aerodynamic flow and decreases drag around the wheel attachment.
SLIDER SEATPOST DESIGN
Superlight Carbon Seat post with adjustable offset for perfect positioning. 25mm of extra saddle cradle offset adjustment means you can position your seat exactly where you want it to be.
YOELEO TEST TEAM - 4MINDPROJECT
4Mindproject is a UCI continental cycling team who attend various UCI races throughout the year. R12 is our team machine.
UCI Approved
R12 is UCI Approved
6 YEARS OR LIFETIME WARRANTY
Durlable, Afforable, Quality Frameset We offer 6years quality warranty for the Frameset including the handlebars by H9 V2.
Optional for lifetime warranty.
CRASH REPLACEMENT
We hope you don't need this but if you have a crash, we offer a 30% crash replacement discount on all wheels and framesets. Please contact us and we’ll do our very best to help you and ride again ASAP.
