R12 Disc Brake Bike Frameset
Regular price
$1,750.00
Sale price
$2,200.00
Unit price per
The R12 is designed to make no compromise in terms of aero performance. With a large BB shell, you can be sure power transfer is outstanding. The R12 also allows for incredible flexibility of rider position. Take the R12 to challenge your best buds for the town sprint?
Frameset:R12 Frame+Fork+Handlebar+Seatpost
Frame Sizes:43cm,47cm,50cm,52cm,54cm,56cm,59cm
Handlebar Size:380mm,400mm,420mm,440mm
Stem Size:90mm/100mm/110mm/120mm
Material:High Modulus Toray 800 Carbon Fiber
Color: Hemidium / Emerald Green / Custom Painting
Carbon Weave:UD
Groupset Compatible:Machine and Di2 compatible
BB:BB386
Rear Dropout:12*142 Thru Axle
Rear derailleur hanger:Replacable
Headtube:1-1/2"
Fork:Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle
Fork Offset:45°
Brake:Flat Mount Disc Brake
Max Tire Width:32mm
Cable:Internal cable
Frame Weight:950g(50cm)
Fork Weight:390g
Accessories: Handelbar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 3PCS
Front Axle 1PC, Rear Axle 1PC
Limited Rider Weight:110KG
Warranty: 6 Years

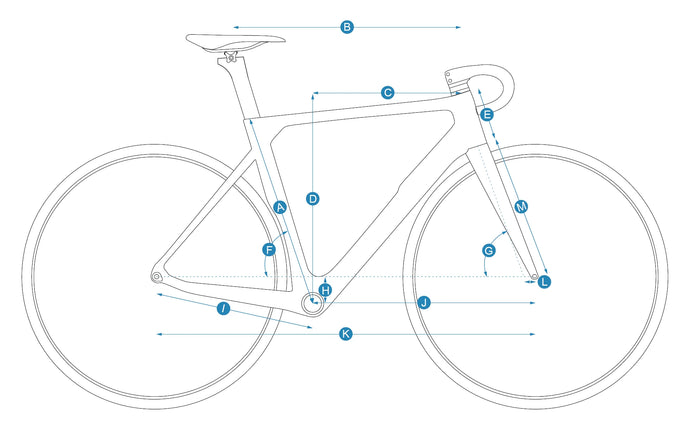

Geometry:
Size Dimension | A | B | C | D | E | F | G | H | I | J | K | L | M |
43CM | 430 | 505 | 370.6 | 501.6 | 100 | 75° | 70.5° | 72 | 415 | 572.9 | 977 | 43 | 371 |
47CM | 450 | 516 | 375.9 | 505 | 100 | 74.5° | 71.5° | 72 | 415 | 570.7 | 974.8 | 43 | 371 |
50CM | 470 | 528 | 378.6 | 520.9 | 115 | 74° | 72° | 72 | 415 | 574.2 | 978.3 | 43 | 371 |
52CM | 490 | 540 | 381 | 536.9 | 130 | 73.5° | 72.5° | 72 | 415 | 577.1 | 981.3 | 43 | 371 |
54cm | 510 | 552 | 386 | 550 | 145.7 | 73° | 73° | 72 | 415 | 583.5 | 987.6 | 43 | 371 |
56CM | 530 | 567 | 388.2 | 567.2 | 160 | 72.5° | 73° | 72 | 415 | 588.9 | 993.2 | 43 | 371 |
59CM | 560 | 582 | 393 | 581.6 | 175 | 72° | 73° | 72 | 415 | 598.1 | 1002.4 | 43 | 371 |
Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That¡¯s why you¡¯ll see some overlap in our recommendations.
Size | XXS 43CM |
XS 47CM |
S 50CM |
M 52CM |
L 54CM |
XL 56CM |
XXL 59CM |
Rider Height | 155-163CM | 160-168CM | 165-173CM | 170-178CM | 175-183CM | 180-188CM | 185-193CM |

PROROUTE CABLE SYSTEM FOR A CLEAN LOOK
The R12's internal cable routing system, known as the ProRoute system, is designed to accommodate both mechanical and electronic groupsets. This innovative feature keeps your cables tucked away and protected, resulting in a clean, streamlined appearance and reduced maintenance.
EPS+LATEX PRODUCTION TECH FOR HANDLEBAR AND FRAMES
Moulded by one piece monobloc with EPS+LATEX tech makes the handlebar much stiffer and smoother internally, yet easier for cable routing.


EPS+LATEX PRODUCTION TECH FOR HANDLEBAR AND FRAME
As previously mentioned the R12 is moulded by new manufacturing process called EPS+Latex Tech. Unlike traditional methods like nylon bladders, latex is very flexible and can stretch, so the inside of the frame can be moulded more consistently. This new tech makes R12 incredibly smooth internally eliminating fold lines and creases for a more uniformed internal wall smoothness resulting in a stronger frame. It also simplifies the cable routing process and with this new tech, the frameset weight remains lower due to the extra resin overflow rate is higher and spreads more evenly during the moulding process. Our H9 handlebar are using the same tech as well.
AERODYNAMIC DESIGN FOR UNRIVALED SPEEDS
The Yoeleo R12 2023 boasts a sleek, aerodynamic frame that minimizes drag and maximizes speed. Glide through the air and achieve your personal best on every ride with the R12's streamlined design.


Beautiful Frame Curves for a Visually Appealing Aesthetic
The R12's elegant frame design not only offers performance benefits but also adds a visually appealing aesthetic to the bike, making it stand out from the crowd.
Enhanced Carbon Fiber Lay-up for Optimal Stiffness :
Experience the perfect balance of stiffness and lightweight performance with the R12's enhanced carbon fiber lay-up. This upgraded feature offers increased rigidity without adding extra weight, ensuring a responsive and nimble ride on every terrain.


Discover the Yoeleo R12 2023
The Ultimate Road Bike for Performance and Style
The Yoeleo R12 2023 carbon road bike redefines performance, innovation, and style for avid cyclists and passionate riders alike. With a multitude of unique selling points and cutting-edge features, the R12 offers an unparalleled cycling experience. In this comprehensive guide, we will delve into the standout features that make the Yoeleo R12 2023 the perfect road bike for every rider.

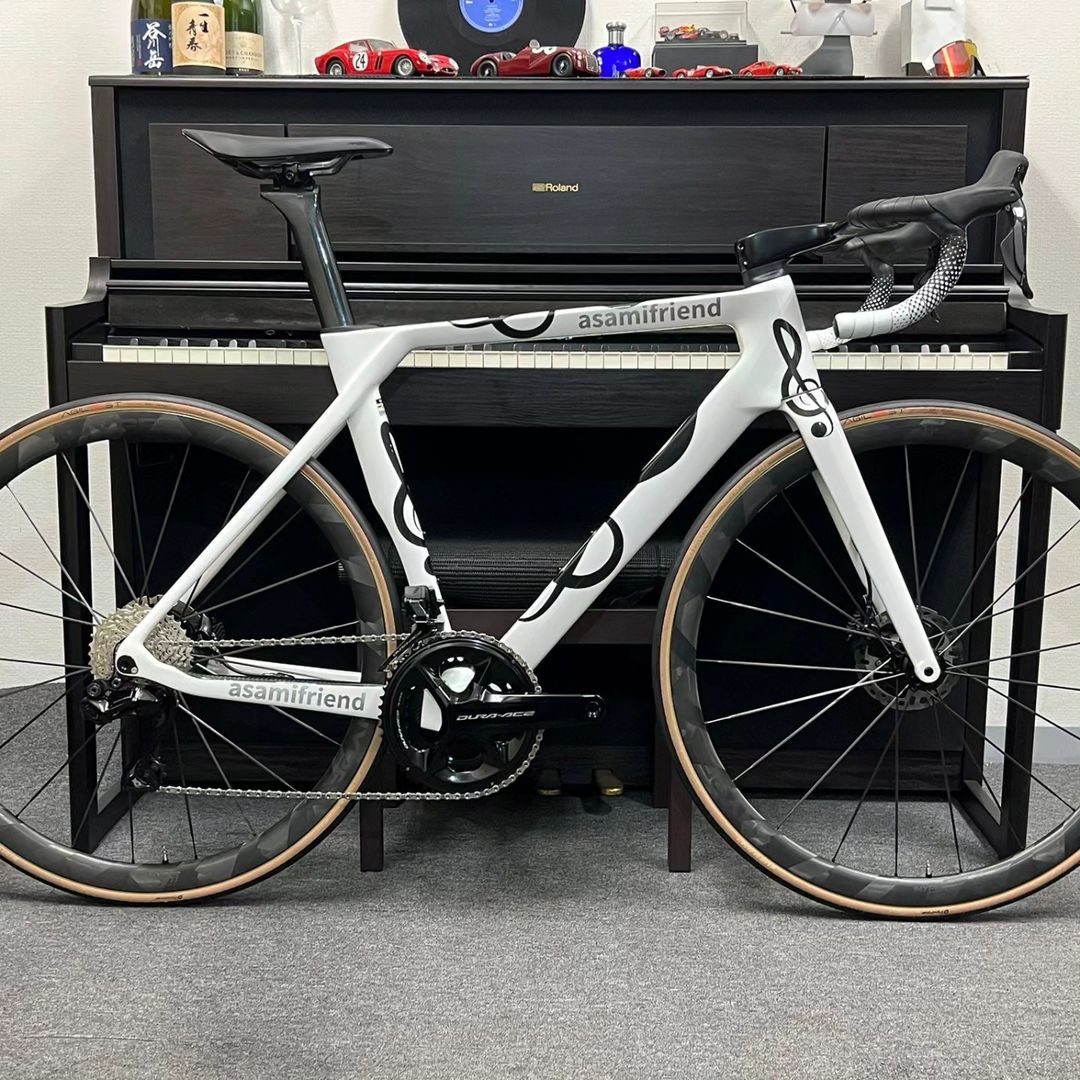

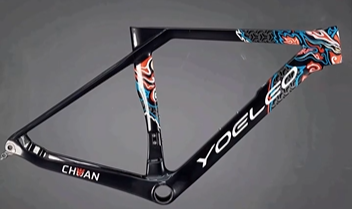

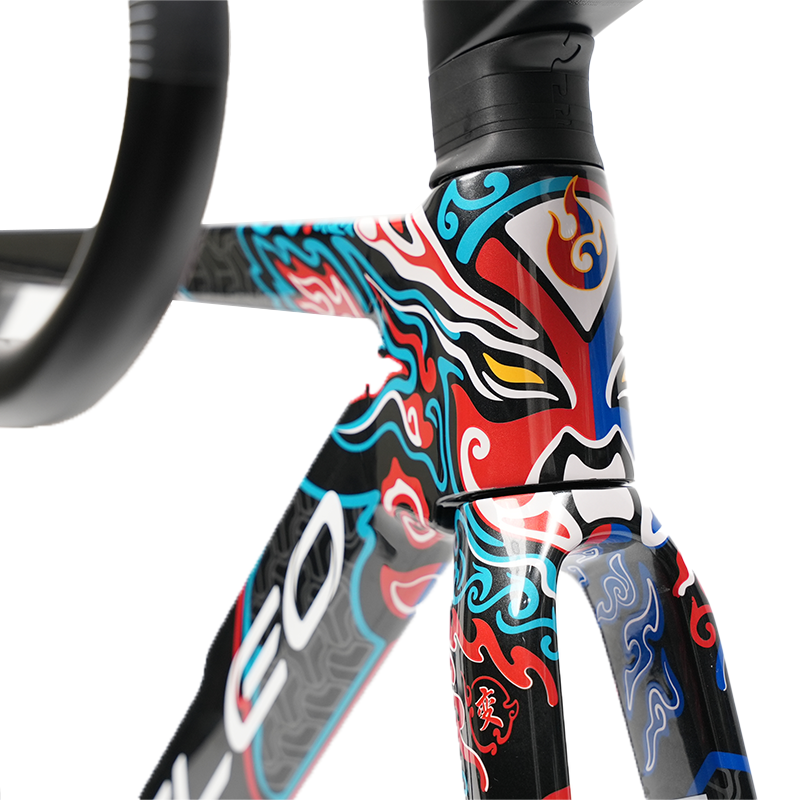

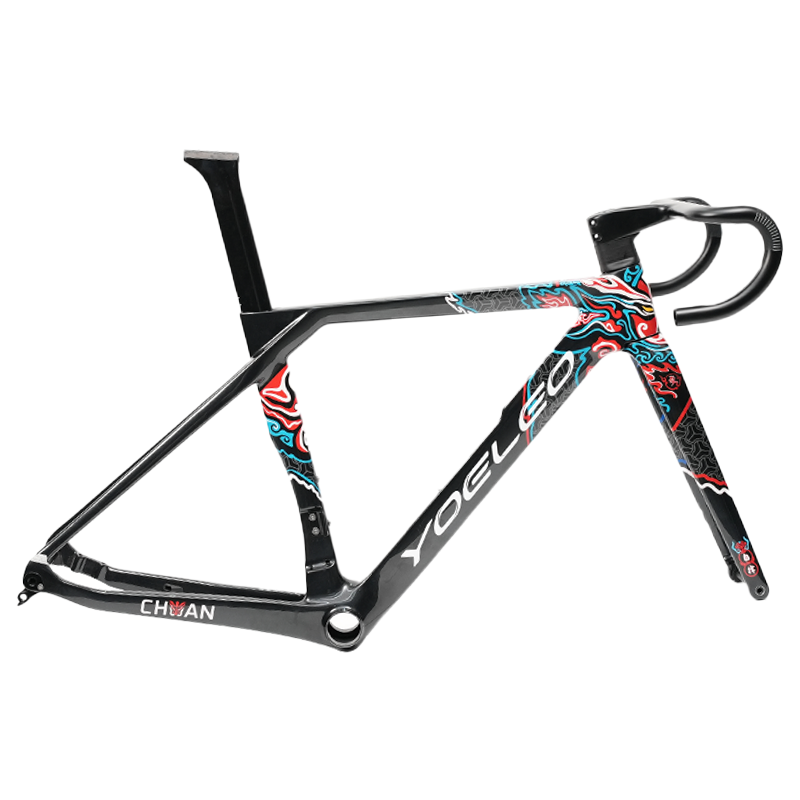

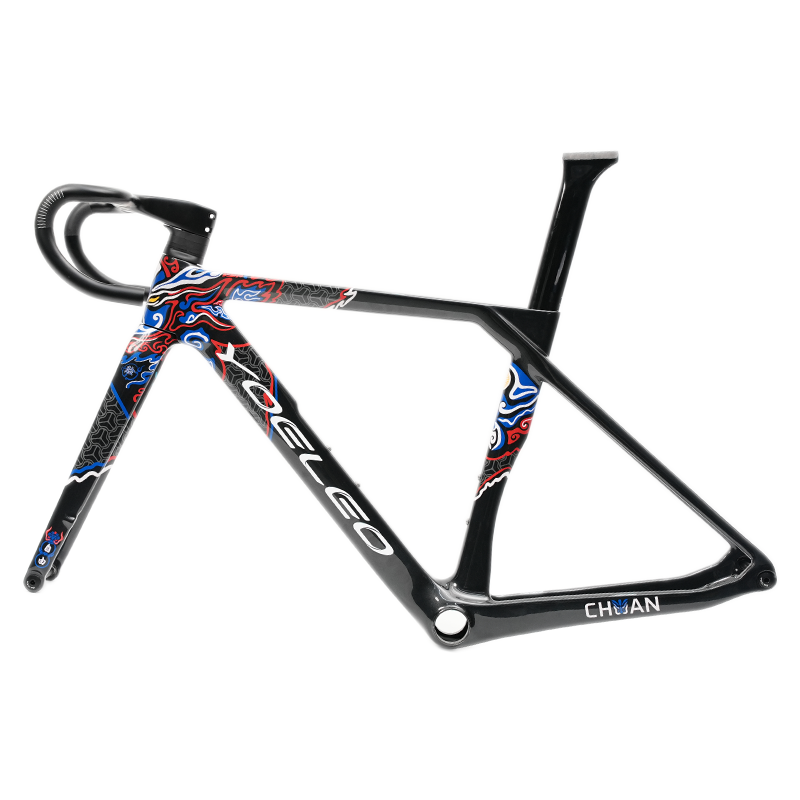

Advanced Paint Job for a Modern and Stylish Look
The R12 2023 model features a modern, stylish paint job that enhances the bike's visual appeal and highlights its innovative design features.


YOELEO TEST TEAM - 4MINDPROJECT
4Mindproject is a UCI continental cycling team who attend various UCI races throughout the year. R12 is our team machine.
